iriConnect

iriConnect

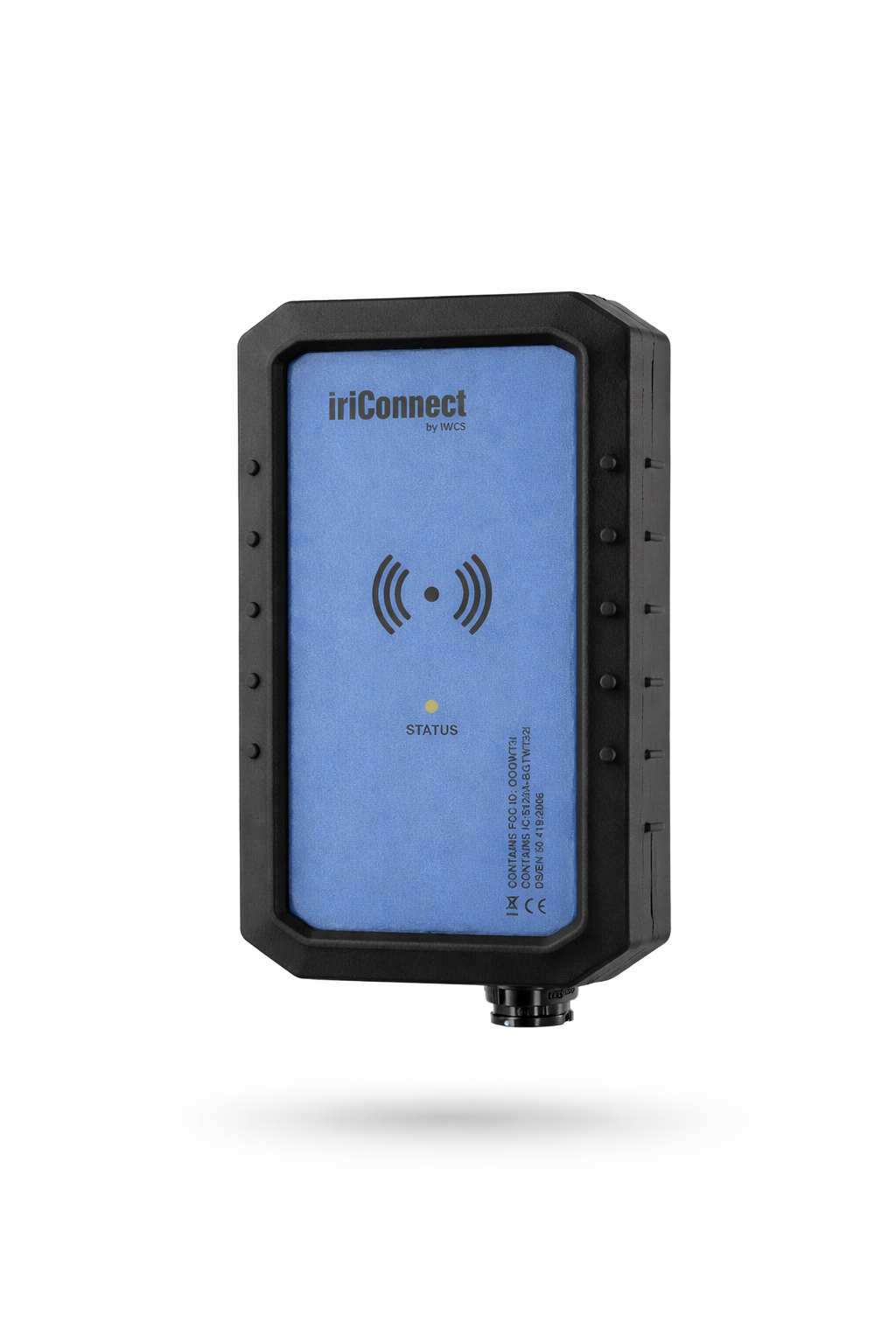

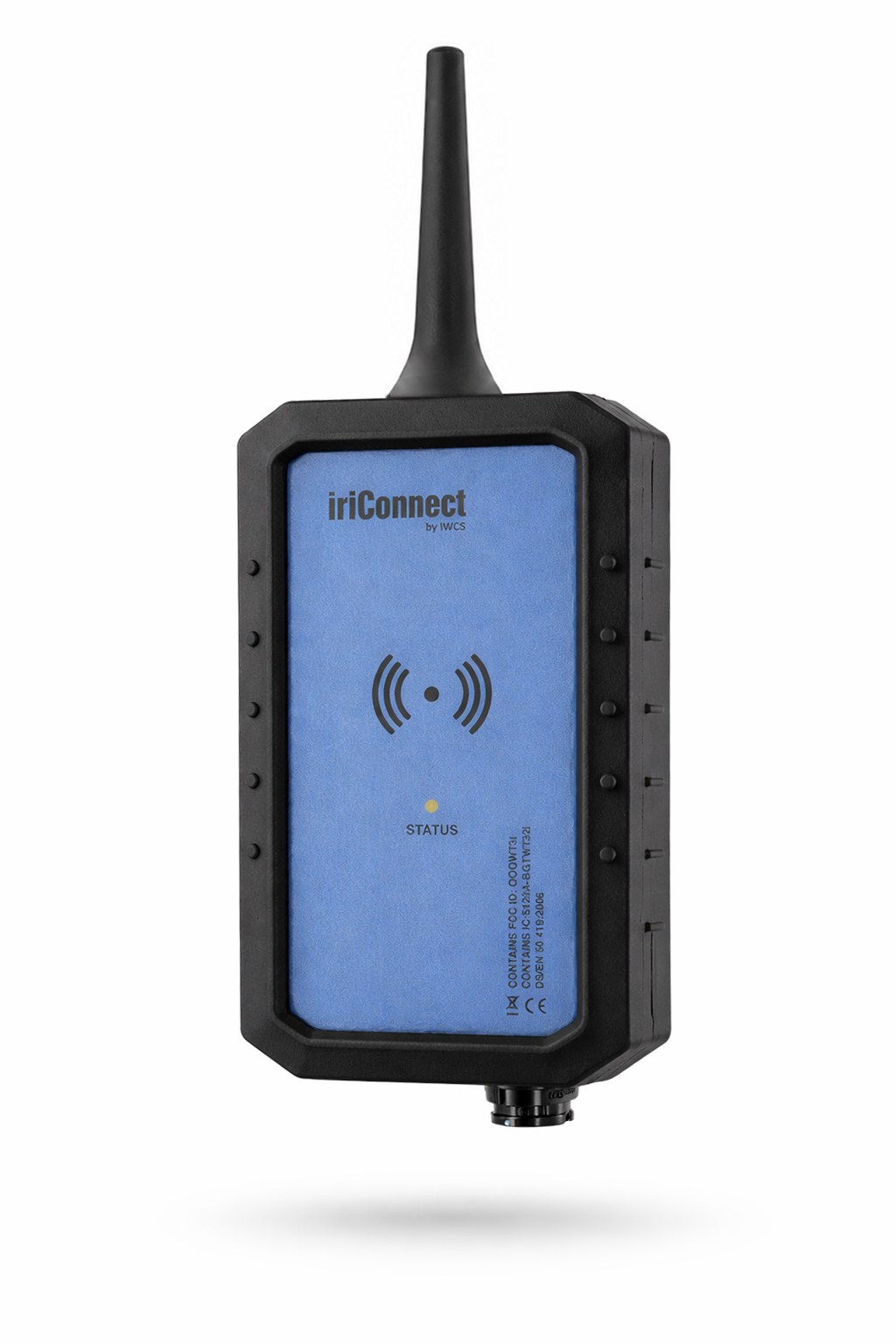

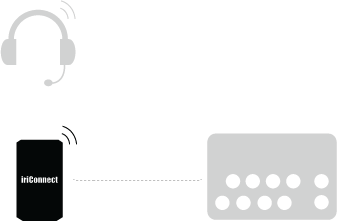

iriConnect is a digital Audio/Data access point for any wireless connections.

Used with:

  • iriComm headsets
  • iriBelt
  • Audio Link
  • Mobile Phone
  • Various 3rd Party Headsets
  • 2.4 GHz Connectivity
  • Powered by iriSound
  • IP 67 Waterproof
iriConnect external antenna is a digital Audio/Data access point for any wireless connection.

The external 2.7dBi antenna privides a uniform 180 degree coverage field (must be mounted in a vertical position).

This unit is fully waterproof and can be mounted on a targa-frame or bimini top.

Used with:

  • iriComm Headsets
  • iriBelt
  • Audio Link
  • Mobile Phone
  • Various 3rd Party Headsets
  • 2.4 GHz Connectivity
  • Powered by iriSound
  • IP67 Waterproof for outside installation
  • Available with REAR or BOTTOM cable connection

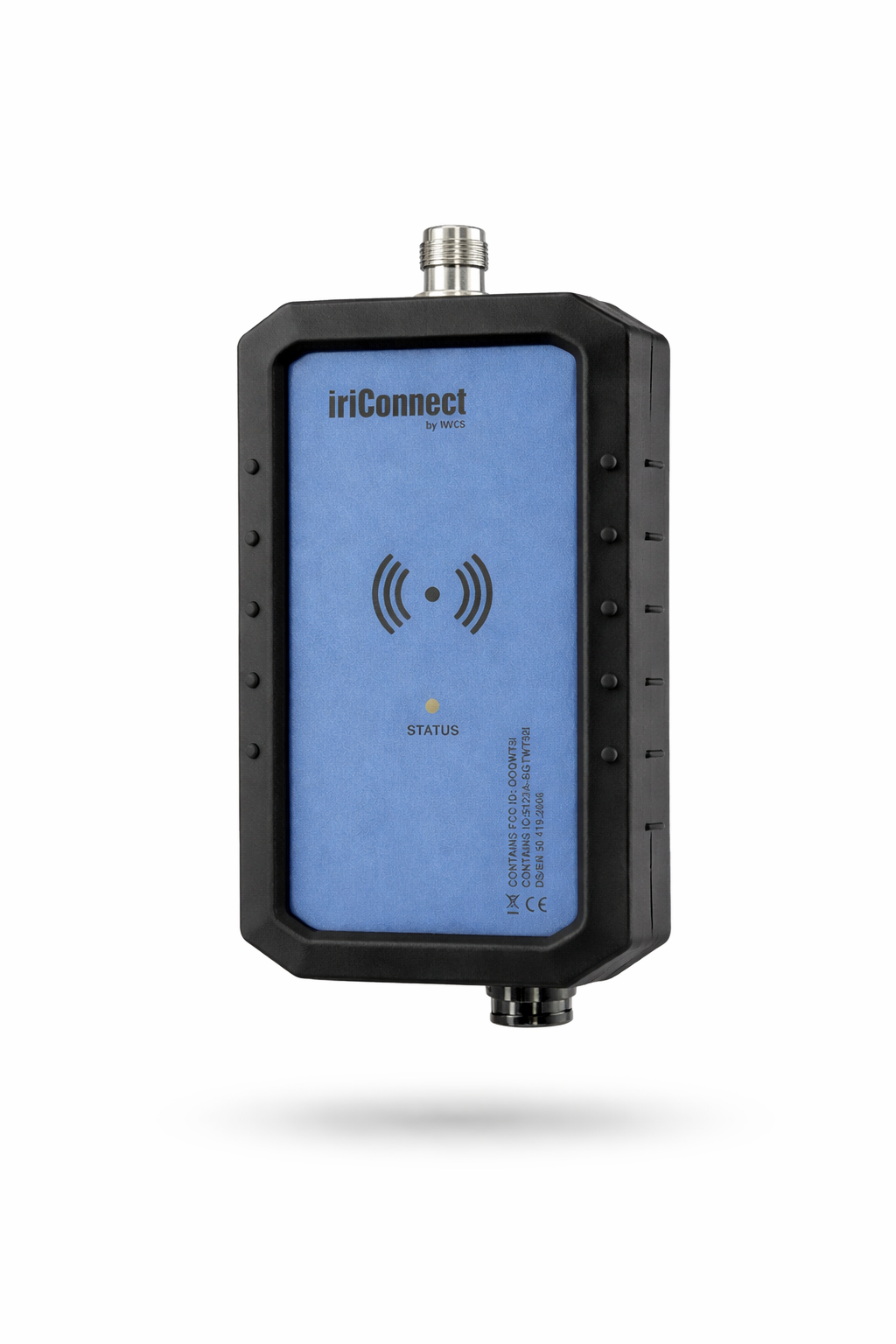

iriConnect with external antenna connection is a digital Audio/Data access point for any wireless connection.

The RPTNC connector facilitates the connection to a external antenna of choice or a DAS (Distributed Antenna System) – possibly including sections of radiating cable.

Due to the limited corrosion resistance of the RPTNC connector, this unit must be mounted in a protected environment.

Used with:

  • iriComm Headsets
  • iriBelt
  • Audio Link
  • Mobile Phone
  • Various 3rd Party Headsets
  • 2.4 GHz Connectivity
  • Powered by iriSound
  • IP67 Waterproof but outside installation is not recommended
  • Available with REAR or BOTTOM cable connection

User Manual: iriConnect

iriSelect

Easily solve the need for a user-friendly and intuitive instrument panel with the iriSelect Black Box. Control the iriSound Intelligent Intercom seamlessly through your vessel’s or vehicle’s existing Multifunction Display (MFD). Experience the convenience of managing all iriSelect functions, including recording via iriStore, mobile phone and hailer, right from your MFD. Simplify your communication setup with the iriSelect Black Box and optimize your control interface.

iriSelect is an intelligent, helm-mounted, multifunctional control and status unit.
iriSelect acts as the system controller for your iriSound intercom system. From here you control audio routing, noise cancelling profiles, radio access and more. iriSelect also provides status information of up to 4 connected radios.
Key features:
  • Quad front-mounted PTT buttons + mode switch button.
  • Multi-color LED indication for each PTT button
  • Numeric LED display for mode status indication
  • Radio status indication for up to 4 connected radios
  • Switching between pre-defined operating modes (audio segmenting / talk groups)
  • Adaptive Voice Activity Detection – AVAD
  • Activation of system “stealth mode”
  • Indication of lost connection to wireless units
  • Error indications

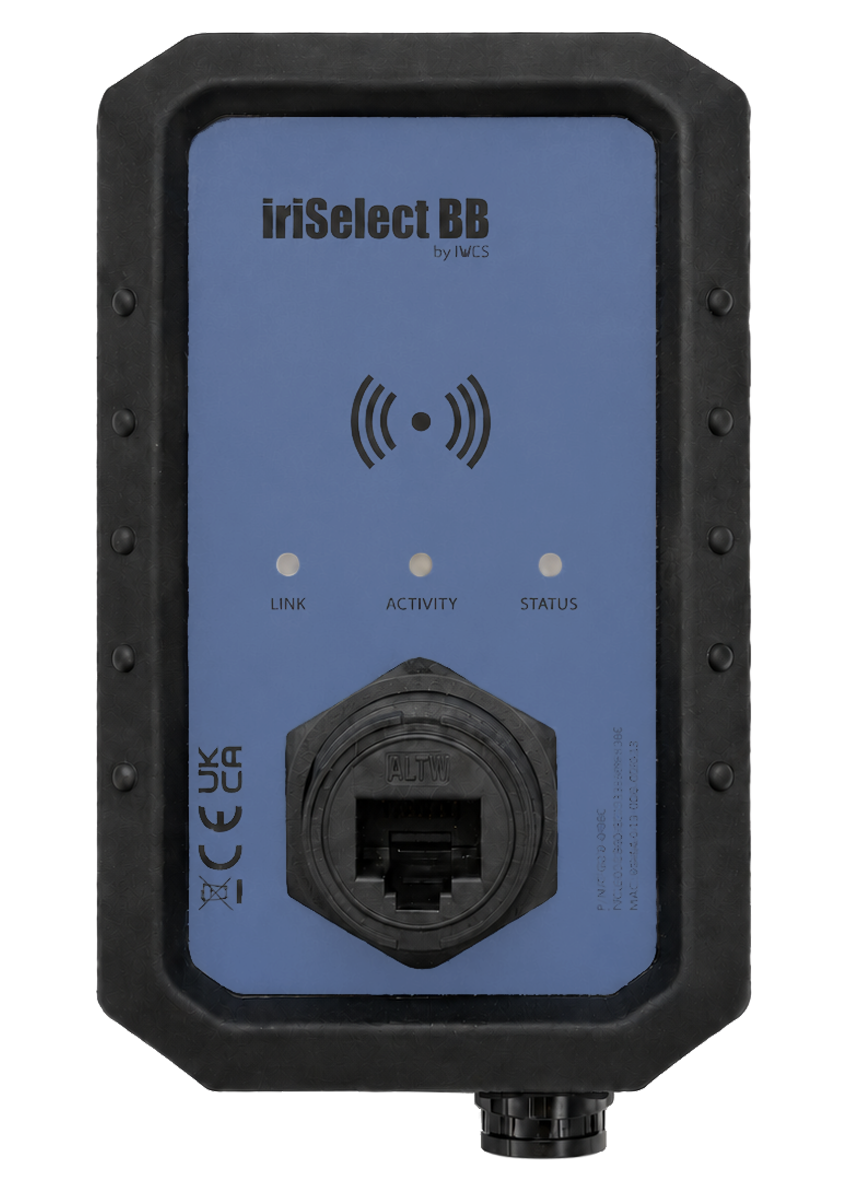

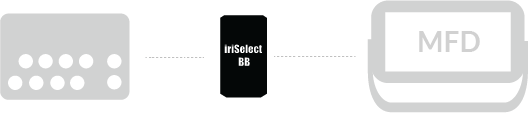

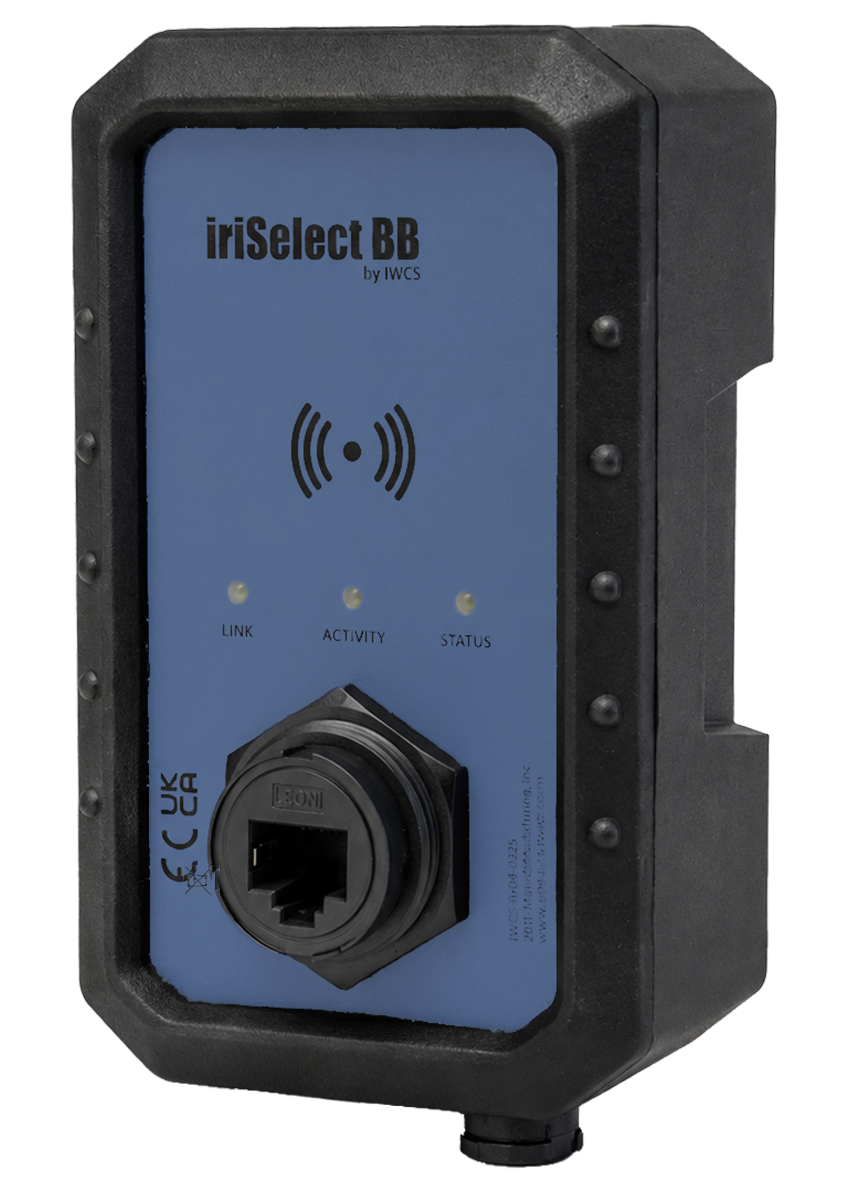

The desire for a user-friendly, intuitive and clean instrument panel is solved easily and elegantly with the iriSelect Black Box, where the iriSound Intelligent Intercom is controlled via the vessel’s or vehicle’s existing Multifunction Functional Display (MFD).
In addition to all the known iriSelect functions, the recording function via iriStore,
mobile phone and hailer can now be easily controlled via the MFD.



SCREEN LAYOUT
IWCS Interface for intercom systems works on multi funktional displays (MFD), Phones and tablets. Garmin Raymarine waterproof intercom communication can save lives Home Usermanual Grid settings

The user interface is designed to auto-adapt
to your specific Multi-Function Display unit,
and the system will auto-generate a screen
layout that matches your specific intercom
system configuration, considering number of
connected radios and headsets etc.
If the system is to be used on a fleet where
all vessels are uniform and operated by many
different users, a user-optimized design may
be the solution. IWCS offers to design such
customized layout.

TALK GROUPS

IWCS Interface for intercom systems works on multi funktional displays (MFD), Phones and tablets. Garmin Raymarine waterproof intercom communication can save lives Home Usermanual Grid settings

In contrast to the standard iriSelect, where
a fixed number of operational modes are
pre-programmed into the device from the
factory, iriSelect Black Box allows you to
dynamically change voice groups, radio access
rights etc. during a mission. The screen
provides an intuitive, visual presentation of
audio routing in the system, and changes take
effect immediately. To prevent unintentional
changes to settings, an optional PIN code
protection can be enabled.

QUICK GUIDE

IWCS Interface for intercom systems works on multi funktional displays (MFD), Phones and tablets. Garmin Raymarine waterproof intercom communication can save lives Home Usermanual Grid settings

Your Intelligent iriSound Intercom System and
iriSelect Black Box have many functions, and
not all of them are used every day. For your
convenience, the iriSelect Black Box contains
both a Quick Guide and a more detailed user
manual. On request, user-specific details and
information can also be included.



iriSelect Black Box leaflet: iriSelectBB

iriSelect User Manual: iriSelect

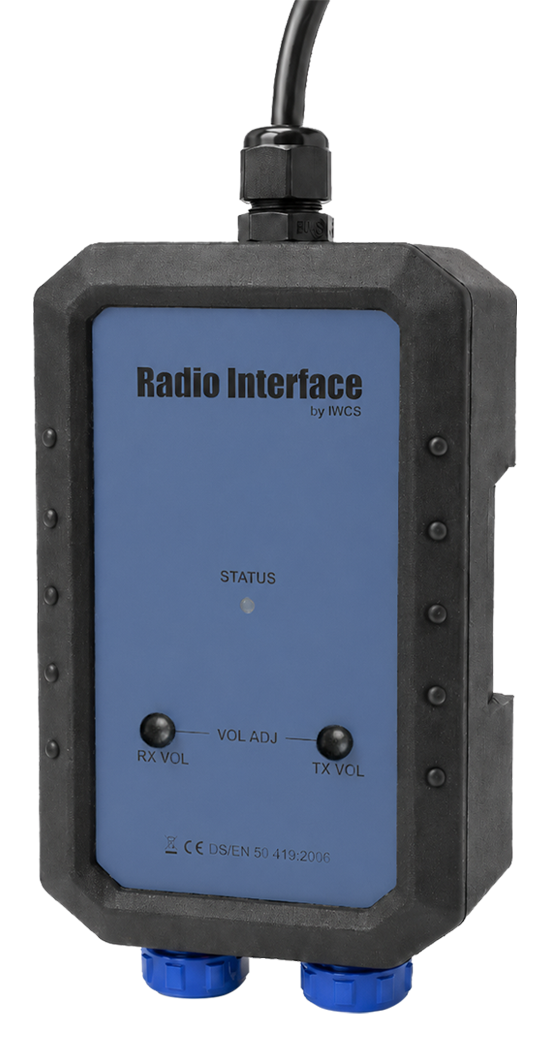

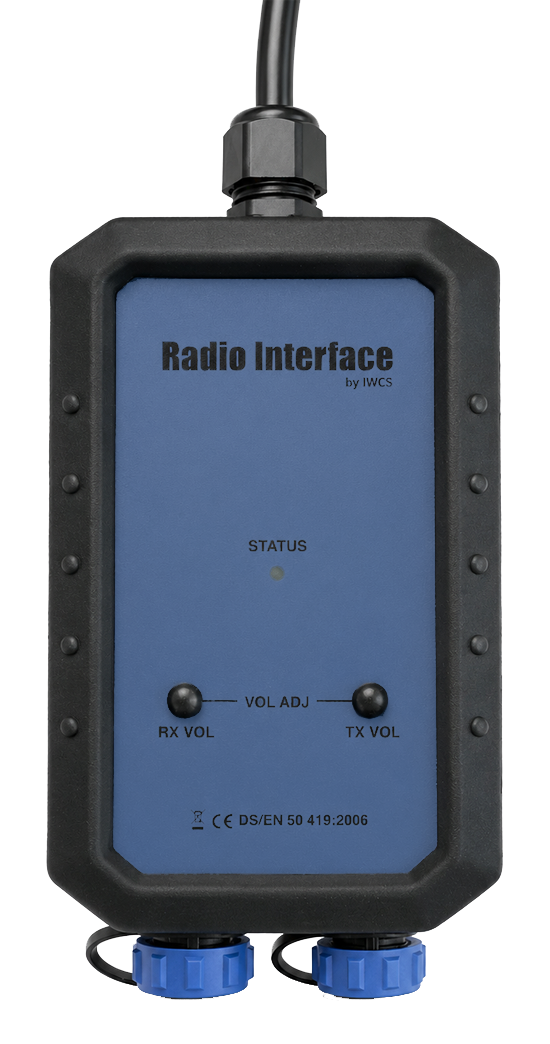

Radio Interface

Radio Interface

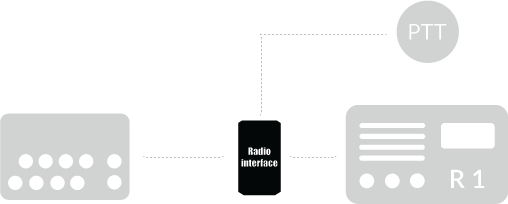

Enhance your iriSound waterproof intercom system with the IWCS External Radio Interface for seamless audio integration of external radios and other audio sources. This configurable interface is compatible with commercially available radios featuring an external audio and PTT interface. When placing your order, simply provide the make and model of your radio, and we’ll pre-configure the unit with the correct settings and physical connector. While we recommend radios from our partners like Motorola, Sepura, Garmin, ICOM, Entel, and Sailor, please note that the External Radio Interface is not limited to these brands. Streamline your audio integration with the IWCS External Radio Interface.

Toggle Content

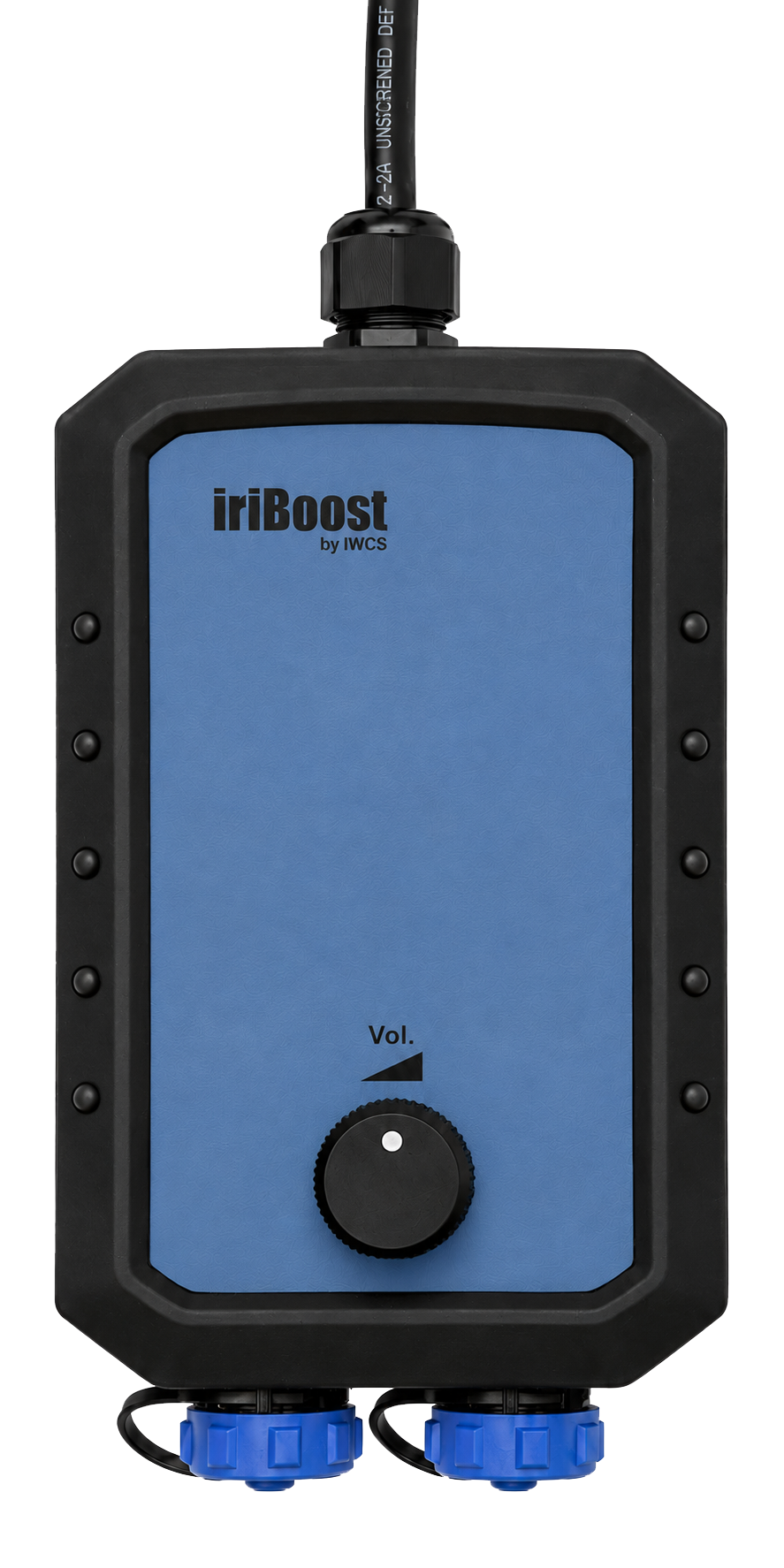

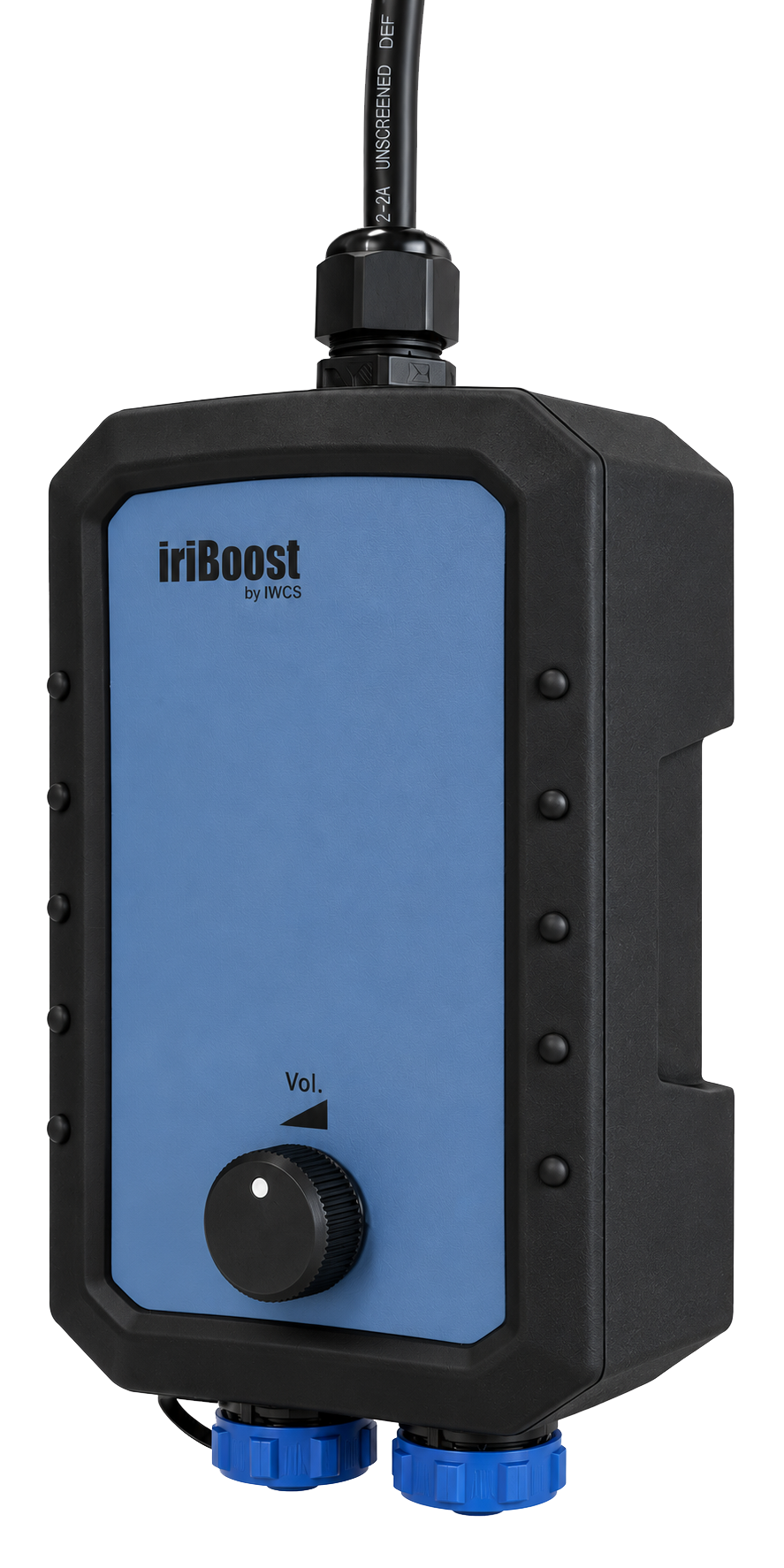

iriBoost

Bridge the gap between your iriSound Intercom system and external loudhailer with iriBoost. This integration eliminates the need for separate systems by combining the loudhailer function seamlessly into your iriSound setup. With iriBoost, enjoy the convenience of one comprehensive system that handles it all, offering additional benefits along the way. Simplify your communication setup and unlock new possibilities with iriBoost.

INTEGRATE YOUR LOUDHAILER WITH THE INTERCOM

iriBoost is the missing link between your intelligent iriSound Intercom system and your external loudhailer.

A loudhailer is often a stand alone feature having its own handheld microphone — or a feature of the onboard VHF radio. With iriBoost you can integrate the loudhailer function with your iriSound intercom system—one system that does it all—and with additional benefits.

iriBoost is an intelligent 100W CLASS D amplifier that can drive a powerful loudhailer.

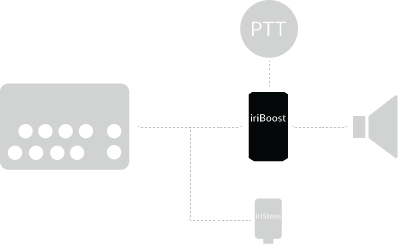

All iriSound models are equipped with 2 AUX ports capable of outputting superior sound quality. By connecting iriBoost to a spare AUX port, your loudhailer becomes an integrated part of your iriSound Intercom system using the headset microphones.

If your iriSound Intercom system includes an iriSelect, it is possible to configure the settings so that only selected users can speak on the hailer. It is even possible to activate the loudhailer wirelessly from an iriComm headset—e.g. while standing out on the deck.

User Manual: iriBoost

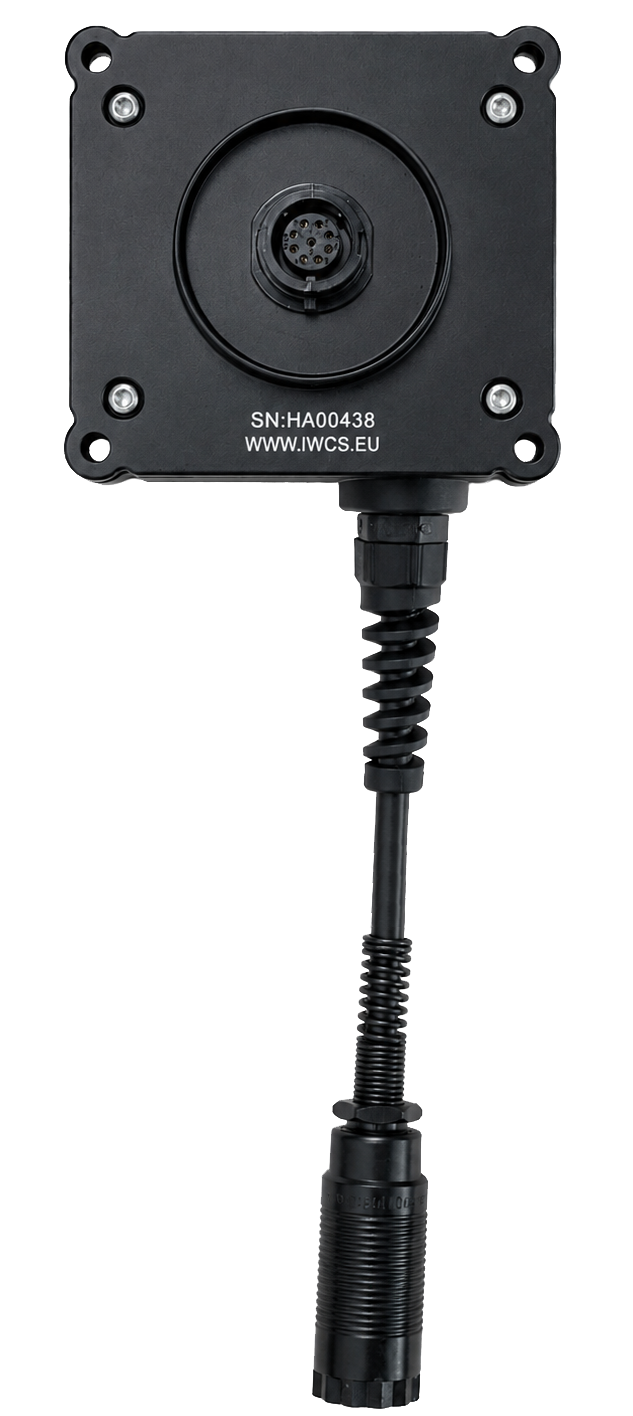

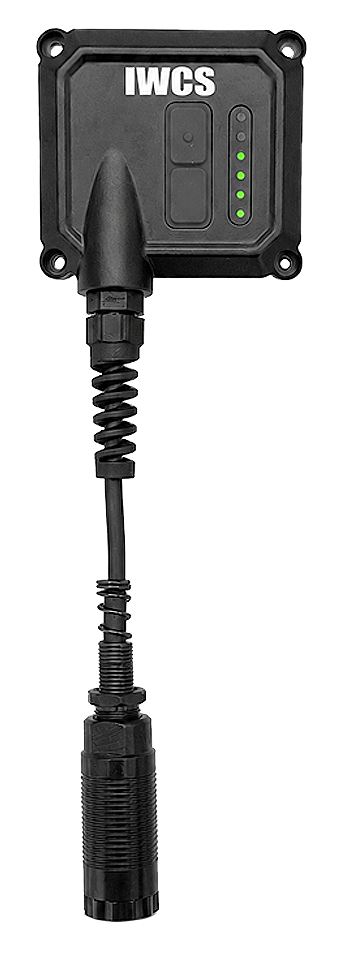

Headset Interface

Headset Interface

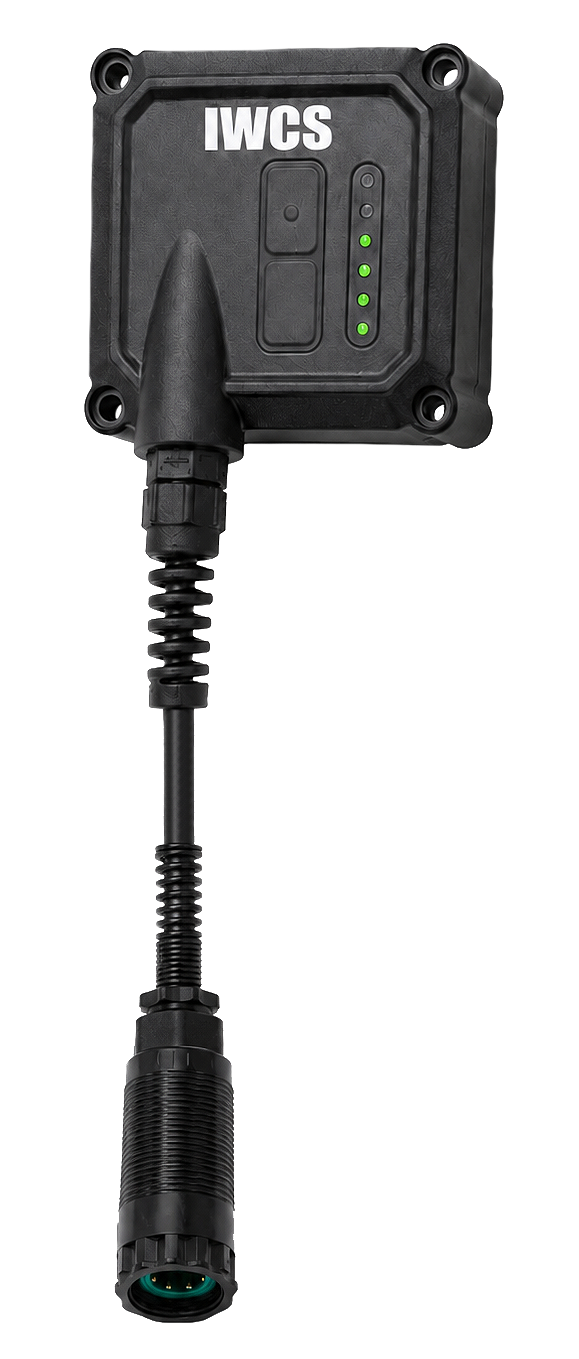

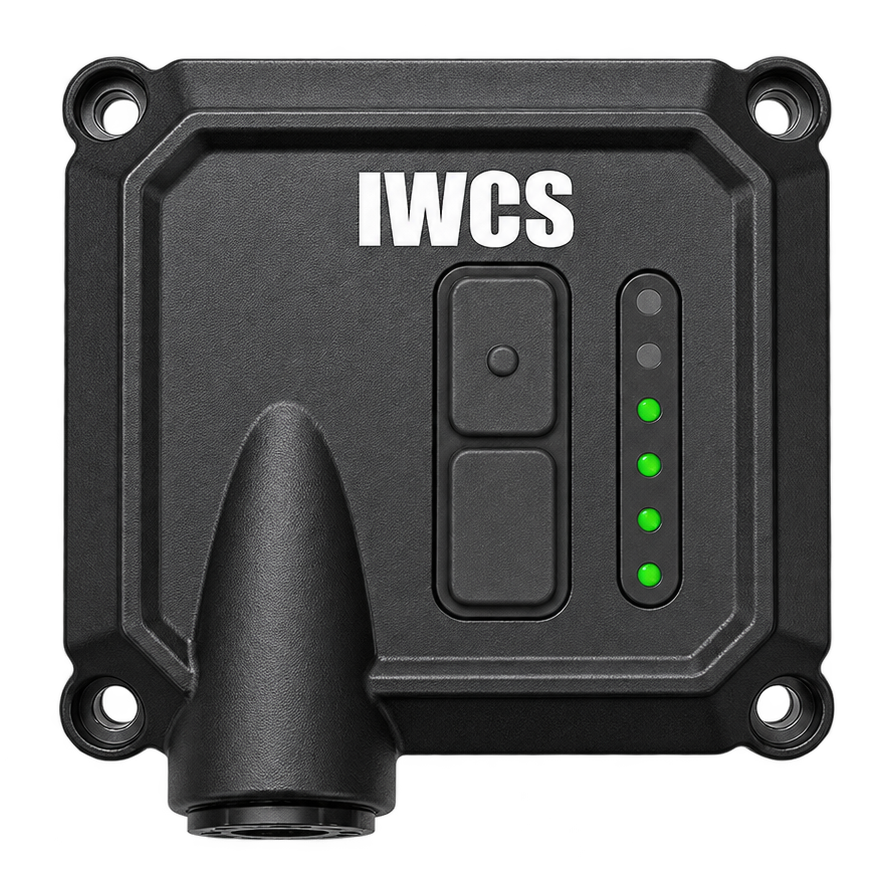

IWCS Intelligent Headset Interface

Key features:
  • Volume Control
  • Remote PTT for up 4 radios
  • Fully waterproof design – IP67
  • Powered by iriSound

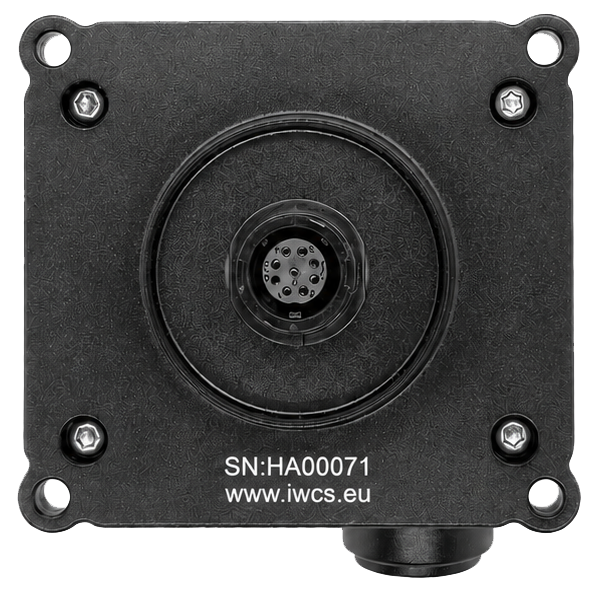

  • Available with pigtail or integrated connector

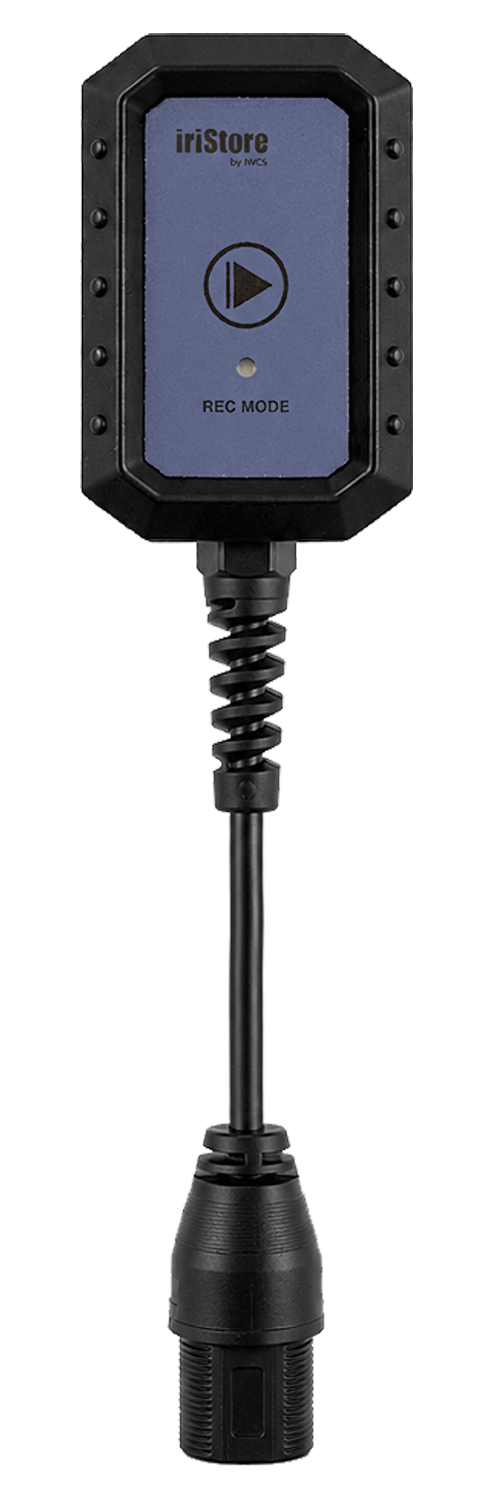

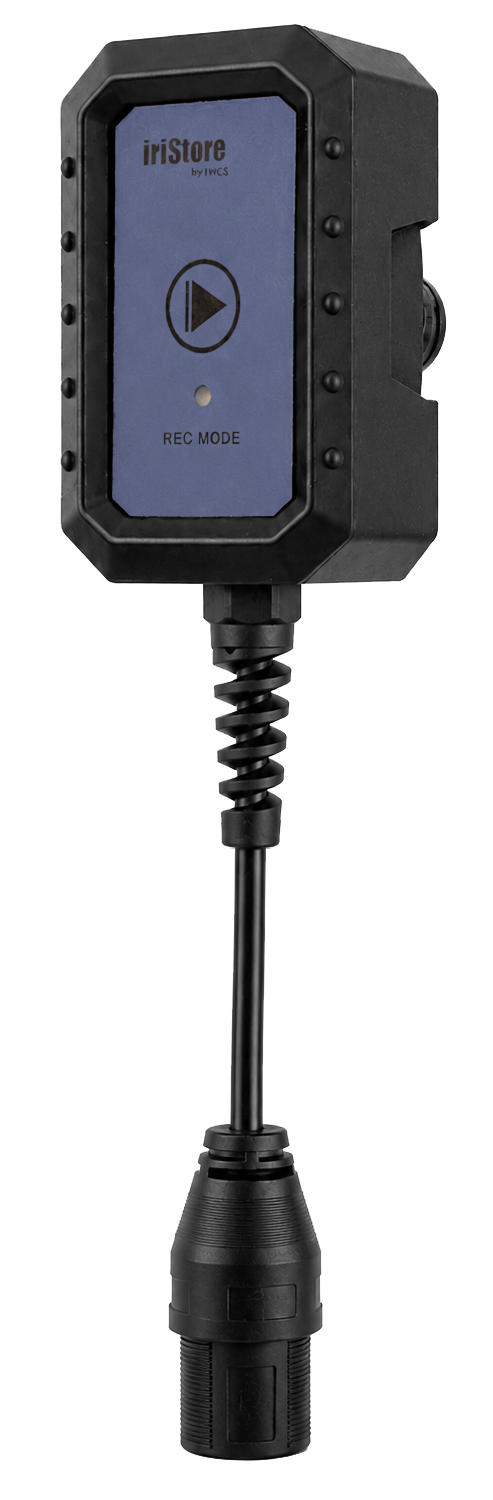

iriStore

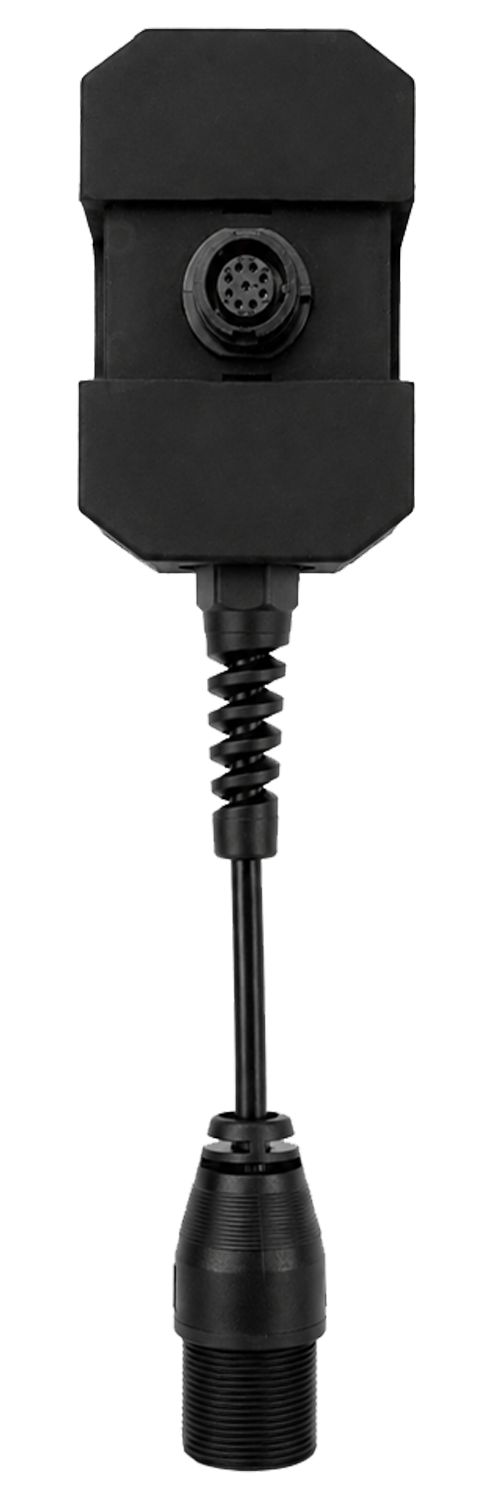

iriStore is the ultimate audio recorder for your iriSound Intercom System, capturing all communication seamlessly. Powered directly from iriSound, iriStore defaults to recording all RX/TX from users and radios. With an iriSelect in the setup, recordings can be customized and limited to specific presets. For group recordings, multiple iriStores can be connected effortlessly. Equipped with a USB stick, iriStore offers ample storage capacity of up to 32MB or 300 hours of recording. Please note that USB media is not included. Elevate your communication experience and preserve important conversations with iriStore.

User Manual: iriStore

Active Splitter

Active Splitter

The IWCS ACTIVE SPLITTER is the ultimate solution for aviation crews, addressing common requirements and enhancing communication capabilities. With the ACTIVE SPLITTER, easily connect two headsets using just one port on your ICS, effectively doubling your headset capacity. Enjoy full intercom functionality between the connected headsets, along with independent volume control for each. Additionally, the ACTIVE SPLITTER acts as an impedance matcher and signal amplifier, resolving compatibility issues between headsets and ICS. Each headset port on the ACTIVE SPLITTER is independently configured to accommodate specific headset types. Streamline your aviation communication setup with the versatile and efficient ACTIVE SPLITTER from IWCS.
